2A Current 2 Pin 60V AC M6 28AWG Electric Bike Connector
Quick Detail Of Electric Bike Connector
1) Advanced structure: Direct plug-in
2) Mutiple pin:2,3,4,5 to 6 pins are optional
3) Electric Bike Connector type : Male / Female / Male + Female
4) Colours:Black,Red,Blue,Green and yellow color supported
5) Cable length:Different cable length could be customized
Feature Of Electric Bike Connector
Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.
Specification Of Electric Bike Connector
| Product Name | M6 waterproof connector | Certification | UL,CQC,CE |
| Current Rating | ≤2A | Gender | Male + Female |
| Voltage Rating | 60V AC | Pin Number | 2-6pin |
| Male Size | Φ7.41*24.1mm | Cable Size | 22AWG-28AWG |
| Female Size | Φ7.41*23mm | Connecting Mode | Direct plug-in |
| External Mold Material | PVC / TPU | Cable Range | 0-4mm |
| Plug/unplug durability | 1500 times | Length | 0.5M/1M/2M/5M/10M/20M/Customized |
Technical date
| Male Pin material: Copper/Copper Alloy (Gold Plating / Nickel Plating) | Insulation resistance: 100MΩ |
| Insert material: PA66+30%GF | Contact resistance: 10mΩ |
| Moulded material: PVC/TPU | IP rating: IP65 |
| Test Voltage: 500V | Wire Diameter : φ3.0-φ4.0 |
| Insulator Material : PA66+30% fibre | Male Pin Diameter : φ0.6mm |

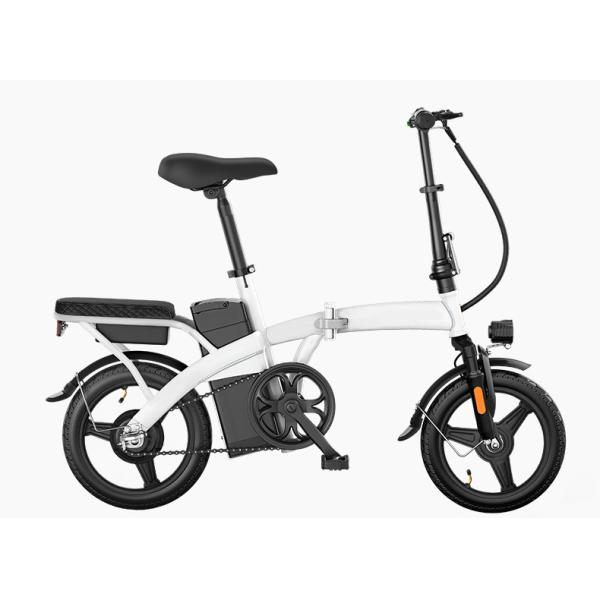

Application Of Electric Bike Connector
1. Electric Bike
2. E-Scooter
3. electric bicycles
Advantage Of Electric Bike Connector
● Direct plug-in assembly , simple in using , convenient in installation.
● Specially designed for low-voltage , weak-current products.
● With compact structure, small and exquisite shape, the plug is more suitable for product needs.
● Our company developed the plug for electric bicycle signal lines in 2019.
Our Advantages
1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.
2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.
3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.
Application of Electric Bike Connector
A09 Specification.pdf
