2. Other Parameters
- Operating Temperature : PA66 : -10℃~+105℃
- Plug/Unplug durability : 1500times
- Connection Mode : Screw Threaded
3. Date Sheet
| Male Pin Diameter | Φ1.2mm |
| Female Pin Diameter | Φ1.0mm |
| Male Pin Material | Copper/Copper Alloy (Gold plating/Nickel plating) |
| Female Pin Material | Copper/Copper Alloy (Gold plating/Nickel plating) |
| Over-Mold Material | PA66 |
| Insulator Material | PA66+30% fibre |
| Wire Specifications | 24AWG---16AWG |
| Wire Diameter | Φ4.0-Φ8.5 |
| Protective Level | IP67 |
4. Electrical Property
| Temperature Environment | -40℃~ 125℃ |
| Plug/Unplug Durability | 1000 times |
| Rated Current | 8A |
| Rated Voltage | 110V |
| Test Voltage | 1000V |
| Contact Resistance | 10 MΩ |
| Insulation Resistance | 200 MΩ |
5. Payment Terms
- 100% T/T before shipment.
- T/T, Paypal, Western Union, L/C.
6. Questions & Answers
Q1: Can I have a sample for test?
Yes, Sample order is welcomed.
Q2: How about the lead time ?
For sample order: 3-5 working days;
For mass order: 7-15 working days.
Q3: Do you have certificates about the waterproof connectors ?
Yes, we have gotten UL, CE and ISO9001 certificates .
Q4: What payment can you accept ?
We are appreciate that you can pay via T/T, and you can also pay through L/C, Western Union, Paypal.
Q5: Is that OK to print our Logo on your product and package ?
Yes, it is OK. Before our production please inform us formally, and confirm the design firstly based on the sample that we send to you.
Q6: Are you a factory ? Where is your factory ?
Yes, we are a factory. We located in Shenzhen .
Q7: Do you accept OEM & ODM service ?
Yes, we accept OEM service. We will produce according to your requirment.
ODM are also welcomed. Our engineers have more than 10 years experience for waterproof connector industry. We would provide our best service for your refer.
Q8: How much does it cost to my country ?
The freight will be given by fright company based on your Gross weight and CBM .
Q9: Can I order 100m cable for 1pc waterproof connector ?
Yes, for waterproof connector,we can connect with 10cm, 1m, 2m,5m, 10m, 50m, 100m cables and so on,
We can process the connectors set according to your detailed requirement .

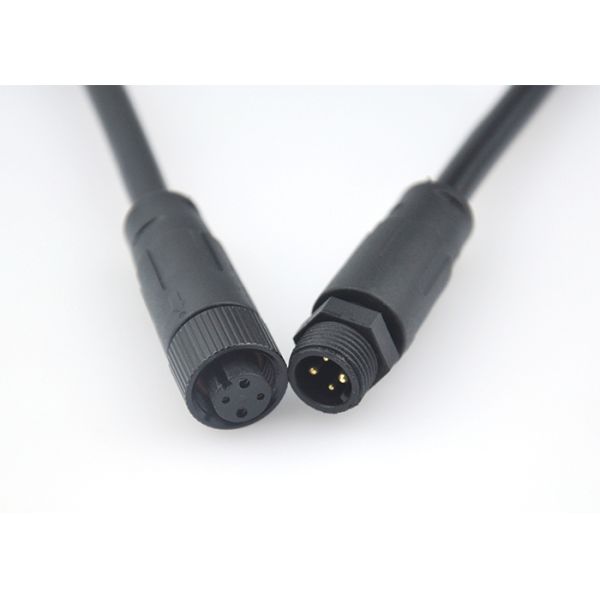

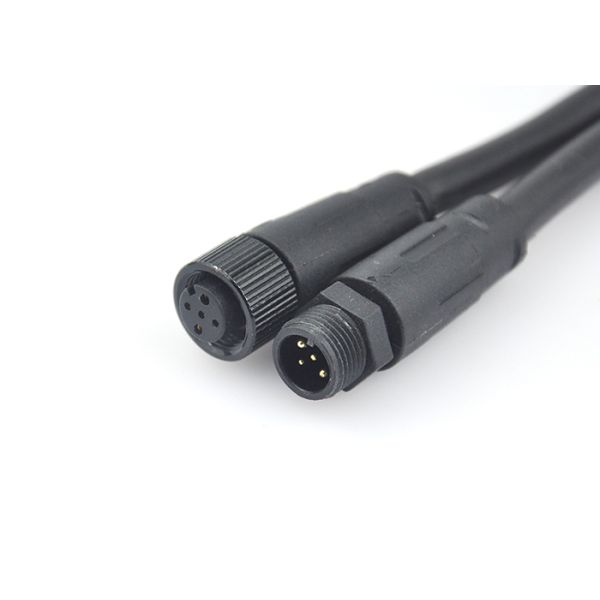

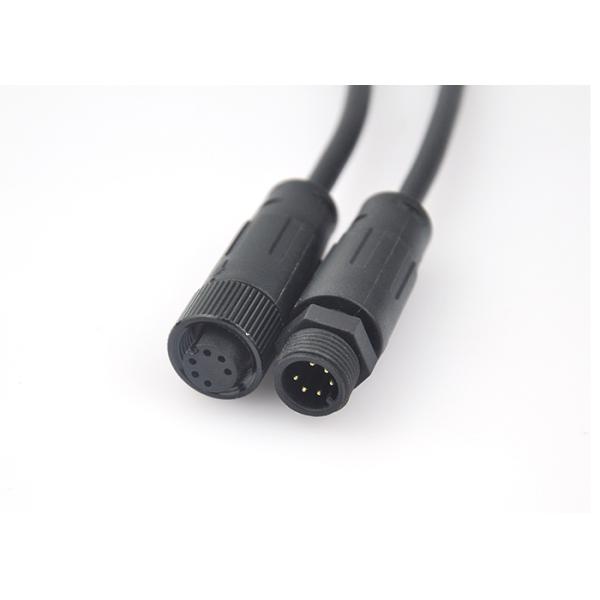

7. Product Details
D18 Specification.pdf
